Suspension geometry program ?'s

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

  • Suspension geometry program ?'s

    I've been reading and searching and reading about S13 suspension geometry... I want to play with a suspension geometry program to visualize a few things.

    Can one of you guys point me towards a good program for this?

    Does someone have all the stock pivot info for S13 front suspension?

    Thanks guys!
    "the kid" -- "wrenching and racing" -- "will race for food!" -- '90 Nissan 240sx ITA #5
    Kessler Engineering in Berlin, CT - dyno, engines, cages, etc.
    Driving Impressions Racing safety equipment, motorsports shop and more!
    Check out our ITA road race build!

  • #2

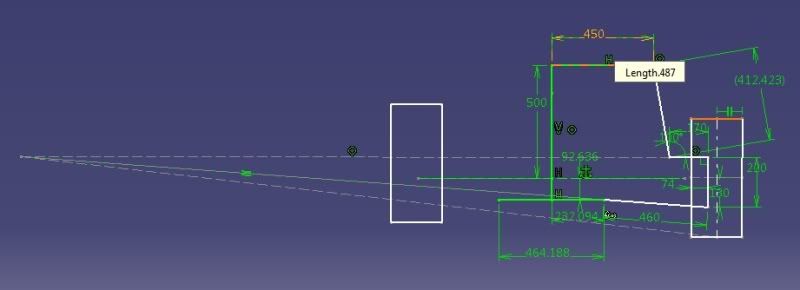

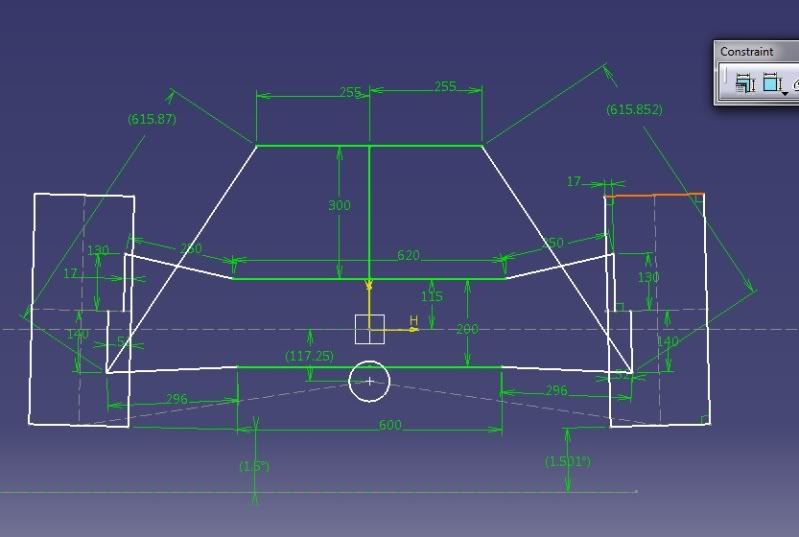

    If you purchased a cheap catia "wink", you can always make a simple sketch and constrain it.I did some work, but I am far from having the stock measurements.


    My Blog

    My Racing video's

    Comment


    • #3
      I dont know if its because the system model is complicated (aircraft carrier) at work, or if its just the program, but I feel there is a steep learning curve when using Catia, particularly loading the models and what not.

      Optimum K and Susprog3d are real straight forward and are meant for suspension modeling and simulation.

      Comment


      • #4
        My suggestion is Susprog.

        Comment


        • #5
          Just DL'd SusProg... and I already have a head ache! lol

          okay... anyone have a S13 file for this? Or am I gonna have to make my own :/
          "the kid" -- "wrenching and racing" -- "will race for food!" -- '90 Nissan 240sx ITA #5
          Kessler Engineering in Berlin, CT - dyno, engines, cages, etc.
          Driving Impressions Racing safety equipment, motorsports shop and more!
          Check out our ITA road race build!

          Comment
